Price:

 € 1,534.88
 UK£ 959.30
 US$ 1,650.00

Motor Size
Key Features:

  • Complete 48V-DC Centrifugal Pump arrangement

  • 2inch input port and 1.5 inch output port for high volume water pumping:

    • max Head 20 Ft.
    • 27 GPM at 20 Ft. Head

  • Semi open Bronze impeller for long life time and low contamination of fluid.

  • Fan cooled motor for continuous duty.

  • Low noise due to factory balanced coupling and rubber feet on rigid stainless base.

  • 24 Months Warranty

  • Made in USA
Technical Specifications:

Input Voltage 24..48V DC
Input Current 7.8 A (15A pulsed 50% duty cycle)
Operating Temp. Ambient: -40..+60°C
Liquid: +85°C
Motor RPM 1800 RPM at 375 Watt input power.
Max. Pressure Inlet: 200 PSI
Case: 200 PSI
Fluid Viscosity 100 SSU
Seal Type Carbon on Ceramic
Buna-N
Part No. for 1/2 HP: 00-21-2200-0325
   1 HP: 00-21-2200-0750
   2 HP: 00-21-2200-1500
   3 HP: 00-21-2200-2250

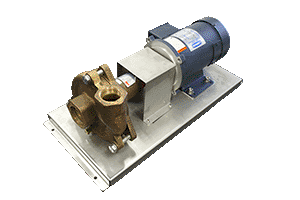

Half HP 48V-DC Centrifugal Water Pump Arrangement

375 Watt (1/2 HP) 48V-DC Water Pump Arrangement for Water Loop 2in INLET 1.5in OUTLET

1/2 HP, 48V-DC Centrifugal Pump for continuous duty or controlled use with Ringdale 48V-DC Motor Controller.

This arrangement of self priming Pump and Motor on a Stainless Steel Carrier makes for a high performance and maintenance free pump arrangement that can be integrated with any 48V-DC system.

Finds its application in water loops for;
  • Air conditioning and heating systems,
  • Irrigation
  • On vehicle operation
  • Alternative energy powered systems
  • 48V-DC emergency battery systems
Compatible with Ringdale's 48VDC Motor Controller for 48V-DC Motors up to 2kW (2-1/2 HP).

Note: Do not run pump dry for more than 60 seconds. Not suitable for pumping abrasives.

Other pump heads and motor sizes available, please call.
