SCT-2000 Energy Monitoring Current Sensors

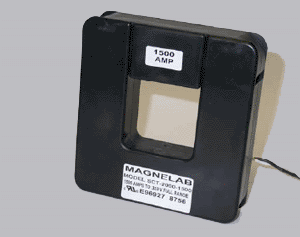

Current Transformer with 2.00 inch opening measures AC current passing through the center
| This current transformer is suitable for all devices and applications requiring output of 0.333 Volt at a 100% current. In the 2.00 inch series all devices have a burden resistor except the 0-1500A device which does not have a burden resistor and its output voltage is clamped to 22 Volts.
|  |
| Part No. |
Rated Current (Amps) |
Dimension (inches) |
| A |
B |
C |
D |
E |
| 00-11-2000-0000* | 0-1500 |
| 00-11-2000-0100 | 100 |
| 00-11-2000-0200 | 200 |
| 00-11-2000-0300 | 300 |
| 00-11-2000-0600 | 600 |
| 00-11-2000-0800 | 800 |
| 00-11-2000-1000 | 1000 |
| 00-11-2000-1200 | 1200 |
| 00-11-2000-1500 | 1500 |
| *Products with -0000 have no burden resistor. |
|
4.75 |
5.00 |
1.20 |
2.00 |
2.00 |
The following table shows the output voltage versus the percentage of 'Rated Current' (see table above).
|
