Rugged housing DC-DC Power Supply with 10. . .100 Volt - Input Range
12 Volt DC 3.6 Amp Output with a low max 130mV ripple
8.4 Volt LI-ION / Ni-Cd / Lead Acid Battery Charger
Battery Charger is programmable via Micro Controller built into the PSU
Power Supply On / Off Input for low Stand-By current (less than 1uA)
High Efficiency
High Temperature Range
Reverse Polarity Protected
Technical Specifications:
Dimensions:
161 x 88 x 37 (mm)
6.3 x 3.5 x 1.5 (inches)
Input:
10. . . 100V DC
Output 1:
12V DC, 3.4 A max
ripple < 130mV
Output 2:
8.4 Volts, 800mA max
Operating Temperature:
-25°C to 40°C (-13°F to 104°F)
Weight:
1.8 lbs (0.85 kg)
Finish:
Passified Aluminum or Non UV Reflecting NATO Green (additional charge for NATO green)

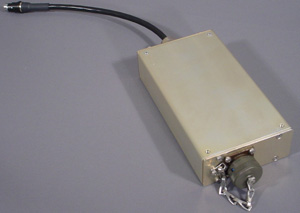

Rugged DC-DC Power Supply ( PSU )
Vehicle Systems Power Supply 10..100V input voltage for powering a 12Volt DC Laptop and a 8.4Volt SMB bus battery
This PSU is ideal for rugged vehicle applications and complies fully with electrical and mechanical military specifications. The unit operates with high efficiency from –25° to 40°C (-13° to 104°F) and is hermetically sealed to survive submersion in water for up to one month operating fully after retrieval.
The unit is unique in its electrical specification as it performs without interruption from an input voltage of 10 Volts to 35 Volts typical. It will also operate at pulses up to 100 Volts without interruption of clean supply.
The PSU has a built in battery charger for 8.4 Volt Li-ION SMB bus intelligent batteries. A built in re-programmable microprocessor guarantees optimal charging times and life of battery.
The unit is protected against short circuit on the output and reverse voltage on the input.
A TTL level input signal (located on the output connector) can put the PSU into Sleep Mode. In this mode the unit will be on standby and consume less than 1 uA (micro ampere) on the input.
The efficiency is typically (84% at 12V 2 A), but never lower than 79% at any of the rated operating temperatures, loads or input voltages.
