Serial RS232 Interface to HID Keyboard USB converter (Type B Socket)

TECHNOLOGY

My Account

18.191.171.72

» Products «	Solutions	Support	My Account	Resellers	News	About	Contact
							Online Enquiry

Price:

€ 162.79
UK£ 101.74
US$ 175.00

Key Features:

Serial RS232 Interface to USB HID Keyboard converter with Type-B connector
Attaches to a PC, Laptop etc. via a standard USB Type-B Connector
RS232 Serial connection via a standard DB-9 male connector

Technical Specifications:

Dimensions:	3.5 x 1.3 x1.0 (inches) 89 x 34 x 25 (mm)
Weight:	2.5 ounces (0.07 Kg)
Serial Communications:	Pin 2 = Receive Data (RX) Pin 3 = Transmit Data (TX) Pin 5 = Ground Pin 7 = Request to Send (RTS) Pin 8 = Clear to Send (CTS) Case = Earth
Part Number:	00-19-0532-0003

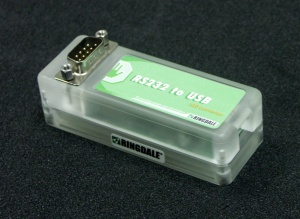

Serial RS232 Interface to USB HID Keyboard converter with Type-B connector

This device converts Alphanumeric or ASCII data strings into HID Keyboard compatible output. Ideal for RS232 Barcode Readers that need to be attached to a Ringdale Access Control System or a Laptop.

The default baud rate is 9600. It can be set to a different baud rate by special request. Please specify with order.

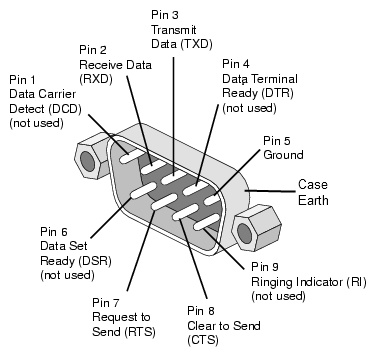

RS232 Connector Pinouts

The pinout configuration for the RS232 DB-9 connector is industry-standard as outlined in the following diagram.

Serial RS232 Interface to HID Converter

Part Number: 00-19-0532-0003

Caution! All specifications published herein are subject to change without notice. See website for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
