For sensor arrangement with housing and pigtail see 00-44-0577-0001 or with housing and integrated receptacle see 00-44-0577-0000
Compatible with intrinsic safety barrier 05-15400000
Resolution 12 bits
(0.5 Kelvin)
Accuracy: -25 and +85 ± 0.5 K typical, 2 K max. -55 to +125 ± 3 K
Small PCB for integration with equipment or housings
Operating pressure from vacuum to 500 psi
Technical Specifications:
Connection:
4 Solder pads for wires
Interface:
I2C - 3..5Volts ± 20%
SMB - 3..5Volts ± 20%
Power Source:
3.3 to 5.5 volts 70 uA
Part Number:
05-15770000
Dimensions
5.5mm x 5.5mm x 35mm

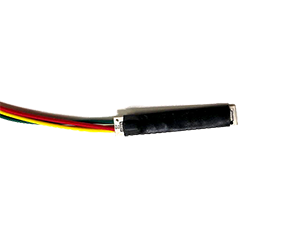

Temperature Sensor Probe - 8 Selectable Addresses, -55° to +125°C, I2C and SMB bus interface
Addressable Temperature Probe with high temperature range for fuel and gas as well as food and environmental applications.
The addressable temperature sensor can be integrated into equipment or used as environmental sensor.
The electronics are extremely compact yet the sensor is thermally isolated from the cable connections to reduce heating and cooling effects through the cable wires.
The sensor is shipped as Ax = 0, no solder links in place. An appropriately sized heat shrink tube is supplied with the sensor, which has to be applied after the address selection has been made.

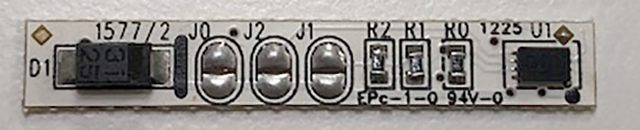

Address Selection
The sensor has been tested to work through Ringdale's Intrinsic Safety Barrier 05-15400000
for details click here.
The sensor is also compatible with Ringdale Quadrature Scaler 00-44-0575-0000. For details click here.
Part Number: 05-15770000
Caution! All specifications published herein are subject to change without notice. See website for Terms and Conditions of use of the website and the information provided herein. See Ringdale website on www.ringdale.com for Terms and Condtions of Sale and Service.
